User flow in UX guide for product builders shipping fast
Key Takeaways
User flows in UX map exact task paths from entry to completion, spotting friction before it ships
Different from user journeys. Flows focus on single tasks, journeys cover emotional experience
Start with happy path, then add decision points and error states systematically
Test flows with 3-5 users before building high-fidelity screens
Standard symbols keep teams aligned—ovals for start/end, diamonds for decisions
Focus on core user goals, not every possible edge case in version one
Your AI feature works perfectly in demos but users abandon it after two clicks. Sound familiar? Most product teams skip user flow mapping and jump straight to high-fidelity designs—then wonder why conversion rates stay flat.
A user flow in UX is a simple diagram showing the exact steps a user takes to complete a task, from entry point to outcome, plus the decisions and screens along the way. Product teams use user experience flows to spot friction early, align on paths, and design cleaner experiences before investing in development.
User flow in UX basics that actually matter for product teams
User flows in UX solve three critical problems product teams face when shipping fast. First, they reveal hidden assumptions about user behavior before you build the wrong interface. Second, they force alignment between product, design, and engineering on exactly what gets built. Third, they help you test task completion without expensive prototypes.
Most teams confuse user flows with feature specs or user journeys. A user experience flow focuses on one specific task completion path. If your flow includes multiple goals or emotional states, you're probably mixing concepts and creating confusion.
Product teams building AI features need user flow diagrams even more than traditional products. AI responses are unpredictable, so you need clear paths for both success and failure states. Learn more about AI UX best practices for complex interaction patterns.

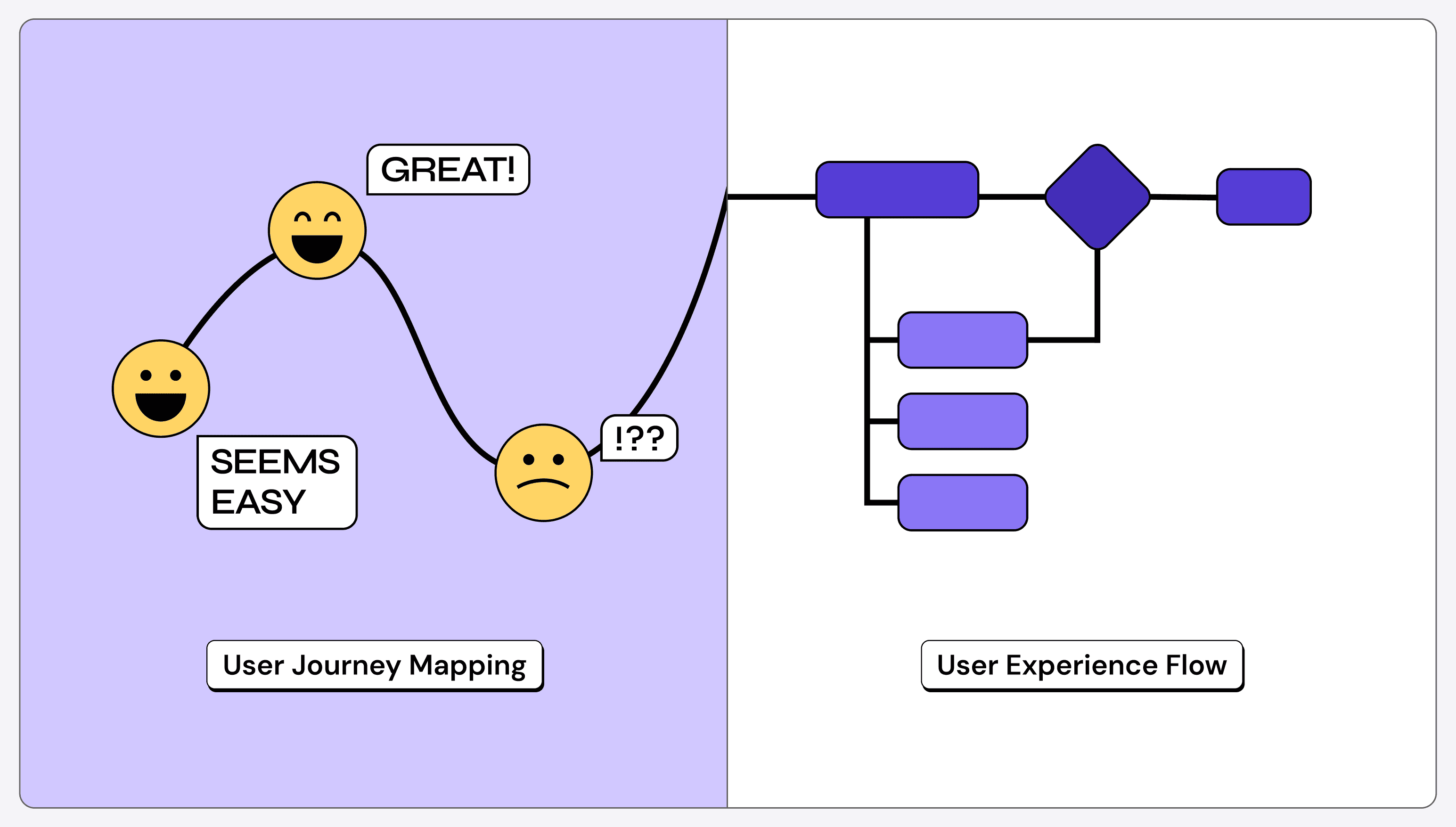

User experience flow vs user journey mapping
User flows in UX zoom in on task-level paths through your product. User journeys zoom out to show cross-channel emotions and touchpoints over time. Both serve different purposes in product development.
Use user experience flows when you need to design specific task completion paths, like "invite team member" or "export data." Use user journeys when you need to understand broader user motivations and pain points across multiple sessions or channels.
AI product teams often need both. User flow maps help design individual AI interactions, while user journeys reveal how AI features fit into broader workflows. Most teams start with flows for faster validation, then layer in journey insights.
For detailed guidance on mapping broader user experiences, check out user journey vs user flow comparisons.
User flow diagrams that keep engineering teams aligned
User flow diagrams use standard symbols that prevent miscommunication between design and development. Start/end ovals show where tasks begin and finish. Process rectangles represent actions or screens. Decision diamonds show choice points that change the path.
Input/output parallelograms indicate user data entry or system responses. Arrows show direction and sequence. Stick to these five symbols for 90% of your flows—adding custom symbols usually creates confusion rather than clarity.
Product teams building AI features should add annotation layers to standard UX flow charts. Note data requirements, API calls, and model confidence thresholds directly on the diagram. This prevents expensive rework when developers discover missing technical requirements.
User experience design process integration points
User flows in UX fit between problem definition and wireframe creation in most product development processes. Create flows after user research reveals key tasks but before designing specific screens or interactions.
Use user experience flow diagrams to guide information architecture decisions. Flows reveal which content and features belong on the same screens versus separate steps. They also help prioritize which paths need the most design attention based on user frequency and business impact.
For AI product teams, flows help validate interaction patterns before committing to specific AI model architectures. Test user flow journeys with simple prototypes to ensure the interaction model works before training expensive models.
Learn more about systematic UX design process integration for product teams.
Building your first user flow map step by step
Start with one specific user goal. "Complete onboarding" is too broad. "Connect third-party integration" works better. User flow maps should focus on single, measurable task completion.
List all possible entry points where users might start this task. Users rarely follow the "intended" path, so include direct links, search results, and shared URLs as potential starting points.
Map the happy path first—the ideal sequence with no errors or edge cases. Use standard symbols and keep steps at the screen or major action level. Avoid getting into individual button clicks or micro-interactions at this stage.
Add decision points where user choices change the path. Mark each decision with a diamond symbol and show different outcomes with separate arrow paths. Focus on decisions that significantly impact the user experience or business metrics.
Include error states and edge cases after the happy path is solid. Show what happens when integrations fail, data is missing, or users make unexpected choices. For AI features, plan for model failures and low-confidence responses.
Test with three to five users using simple clickable prototypes or even paper sketches. Watch where users hesitate or take unexpected paths. Iterate the flow before building high-fidelity designs.
User experience flow examples for common product scenarios
SaaS onboarding flows typically start with signup and end with first value delivery. Map entry points from marketing pages, referral links, and trial emails. Include decision points for different user types or plan selections. Show what happens when verification emails fail or payment processing has issues.
AI-powered search flows need clear states for loading, no results, and irrelevant results. Start with user intent and map through query processing, result display, and refinement actions. Include paths for when AI confidence is low or results need human review.
Checkout flows in product applications should map from cart review through payment completion. Include guest versus account creation decisions, payment method selection, and error recovery paths. Show what happens when payment fails or inventory changes during checkout.
User flow journey optimization techniques
User experience flows reveal optimization opportunities that aren't obvious from analytics alone. Look for paths with too many steps, unclear decision points, or dead ends that don't lead to task completion.
Combine similar decision points to reduce cognitive load. If users choose plan type and payment frequency in separate steps, consider combining them when the choices are independent.
Add progress indicators for flows longer than three steps. Users abandon tasks when they can't see progress toward completion. This is especially important for AI-powered features where processing time varies.
For comprehensive optimization approaches, explore calculating UX ROI through flow improvements.
UX flow charts tools for product teams shipping fast
Paper sketches work best for initial flow exploration with small teams. Use whiteboards for collaborative sessions where multiple stakeholders need to contribute. Digital tools become valuable when you need to share flows across distributed teams or iterate based on user testing.
Figma and FigJam handle most user flow diagram needs for product teams. They integrate well with existing design files and allow easy collaboration. Specialized flowchart tools like Lucidchart or Miro work when flows become complex or need advanced diagramming features.
Choose tools based on your team's existing workflow rather than feature lists. The best tool is the one your team will actually use consistently. Most successful product teams stick with one primary tool for flows and wireframes to reduce context switching.
User flow map validation and iteration cycles
Test user experience flows with real users before building interfaces. Use simple clickable prototypes or even paper sketches to validate the sequence and decision points. Focus on task completion rates and points where users hesitate or ask questions.
Track baseline metrics before implementing new flows. Measure task completion rates, time to completion, and error rates for existing paths. Compare these metrics after launching improved flows to validate design decisions.
Iterate flows based on support tickets and user feedback after launch. Users often find paths and edge cases that weren't obvious during initial design. Update user flow maps based on real usage patterns rather than initial assumptions.
For systematic testing approaches, reference UX research methodologies that integrate with flow validation.
